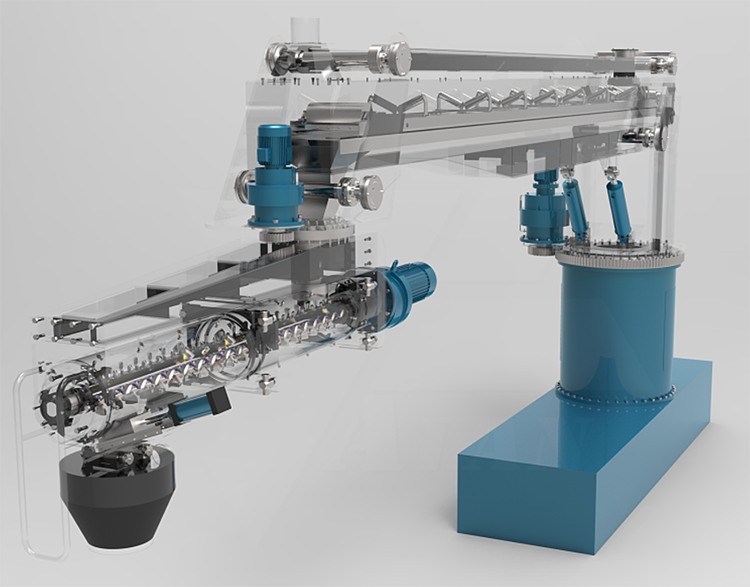

This series of two-arm continuous resin sand mixer is mainly used for mixing resin self-hardening sand and water glass sand.
Adhesive supply system uses advanced gear pump, diaphragm pump, liquid detector, accurate measurement.
Short sand mixing time, no loss of head and tail sand. The arms can be rotated flexibly and the working area is large.
Full-open sand mixing cage arm is convenient for blade cleaning or adjustment, and is easy to operate and maintain.
The electrical appliances are controlled by PLC, which has sufficient restrictions and protection, analog screen display, stable and reliable work, and automatic production.
The main technical parameters
|
Parameters
| S255 | S258 | S2530 |
Productivity(t/h)
| 3-5 | 8-10 | 25-30 |
Grade I Sand Mixing Cage | Turning radius(m) | 2.75 | 3.5 | 3-3.5 |
Motor Power(kw) | 2.2 | 3 | 7.5 |
Secondary Sand Mixing Cage | Turning radius(m) | 1.75 | 2 | 2 |
Motor Power(kw) | 5.5 | 5.5 | 18.5 |
Maxiumum turning radius of sand outlet
| 4.5 | 5.5 | 5.5 |
Resin pump model
| CB-B2.5 | CB-B2.5 | CB-B10 |
Model of curing agent pump | Diaphragm pump | OBL-50
| OBL-101 |
Adhesive quantitative accuracy <±2%
|
Parameters | S2510 | S2515 | S2520 |
Productivity(t/h) | 10-12 | 12-15 | 18-25 |
Grade I Sand Mixing Cage | Turning radius(m) | 3.5 | 2.8-3.5 | 3-3.5 |
Motor Power(kw) | 4 | 4 | 5.5 |
Secondary Sand Mixing Cage | Turning radius(m) | 2 | 2 | 2 |
Motor Power(kw) | 7.5 | 11 | 15 |
Maxiumum turning radius of sand outlet
| 5.5 | 5.5 | 5.5 |
Resin pump model
| CB-B2.5 | CB-B6 | CB-B6 |
Model of curing agent pump | Diaphragm pump | OBL-75
|
Adhesive quantitative accuracy <±2% |
