Product Usage:
This machine is mainly used for mixing sand in foundry workshops, that is, single sand for machine modeling, dry film sand, self-hardening sand, face sand and back sand. It can also be used for glass, ceramics and refractory materials. And other industries to mix all kinds of powder and granular materials.
Features:

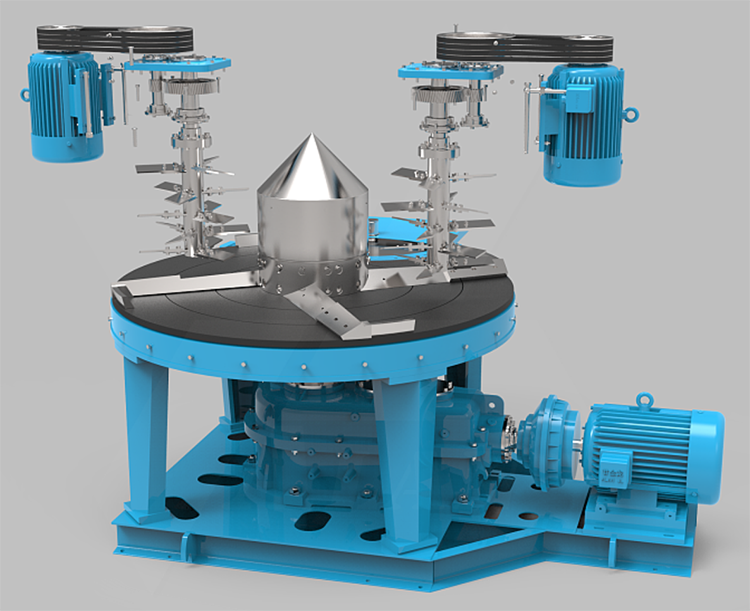

1.The double "S" scraper is optimally matched with the high-speed target rotor, with large sand mixing capacity, strong mixing ability, and good sand performance.
2.New materials such as alumina wear-resistant ceramic backing plate, alloy knife block surfacing scraper, No. 2 filler, etc., have improved the life of wearing parts.
3.Soft start, alloy steel gear, lubrication control machine, ensure the transmission system is balanced and reliable, and can start under load.
4.The latest testing and unloading doors open flexibly and work reliably.
5.An access door is opened to facilitate maintenance and cleaning.
6.The steel structure base makes the machine installation very convenient.
| The main technical parameters | ||||
| Model | GS20-55 | GS20-75 | GS22-75 | GS22-90 |
Disk Diameter(mm) | Ф2000 | Ф2000 | Ф2240 | Ф2240 |
Productivity(t/h) | 20-28 | 25-32 | 30-35 | 35-40 |
Main Motor Power(kw) | 55 | 75 | 75 | 90 |
Rotor Motor Power(kw) | 2*22 | 2*22 | 2*30 | 2*37 |
Spindle Speed(r/min) | 31.72 | 31.72 | 27.32 | 27.32 |
Rotor Speed(r/min) | 1270 | 1270 | 975 | 975 |
| Model | GS25-110 | GS25-132 | GS29-200 |
Disk Diameter(mm) | Ф2500 | Ф2500 | Ф2850 |
Productivity(t/h) | 40-50 | 50-60 | 60-80 |
Main Motor Power(kw) | 110 | 132 | 200 |
Rotor Motor Power(kw) | 2*45 | 2*55 | 2*55 |
Spindle Speed(r/min) | 27.32 | 27.32 | 25.4 |
Rotor Speed(r/min) | 950 | 950 | 850 |
If you have any questions, Please click and contact us.
