Qingdao Huacan Heavy Industry Co.,Ltd.

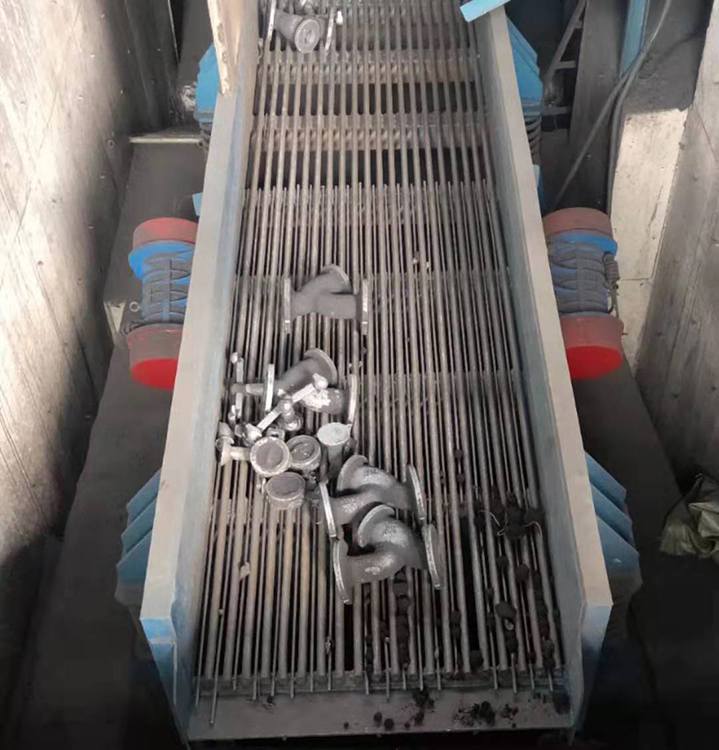

This series of sand falling machine is suitable for manual and mechanized and semi-automatic molding in the casting workshop.
The separated sand mass is further broken and falls through the grid.
Depending on the weight and size of the workpiece, two or four can be connected in parallel.
| The main technical parameters | |||
| Model | Effective Load(t) | Table size(mm) | Installed power(kw) |
| L121 | 1 | 1530*1440 | 2*1.5 |
| L123 | 3 | 2030*1900 | 2*3 |
| L125 | 5 | 2760*1940 | 2*5.5 |
| L128 | 8 | 2760*2000 | 2*7.5 |
| L1210 | 10 | 2930*1940 3000*2400 | 2*9.5 |
| L1215 | 15 | 3230*2340 3600*2800 | 2*14 |
| L1220 | 20 | 3200*2400 3000*2200 | 2*14 |
If you have any questions, Please click and contact us.
