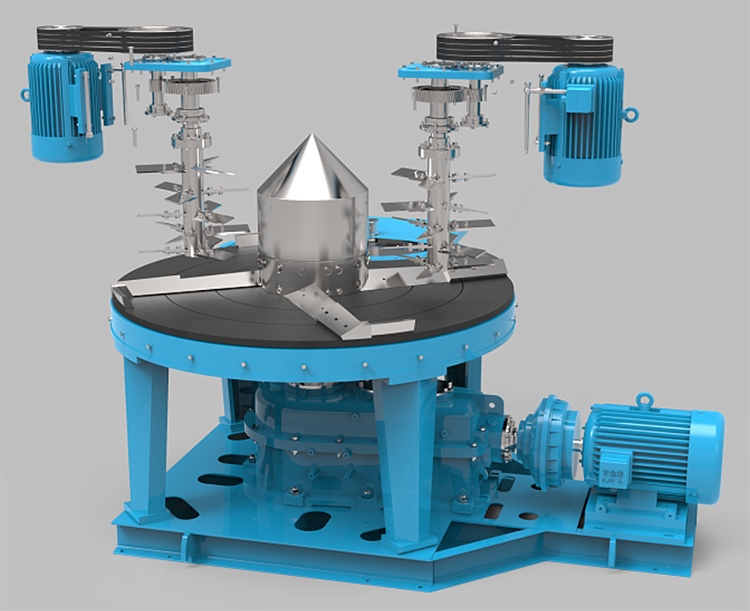

Low speed scraper and medium speed rotor, large amount of sand,blending ability strong, sand comprehensive performance is good.
Diabase cast stone,tungsten carbide surfacing,2 filler,such as new materials, greatly improving the service life of wearing parts.
Hydraulic coupler,alloy steel gear,1 filler, lubrication point machine,to ensure reliable transmission system balance,and can start load.
The latest rotary discharge door open flexible,reliable work.
Symmetrical open access door has made great and clean it.
Steel structure base the machine installation is very convenient.
The main technical parameter
|
Model | Name | Disc Diameter(mm) | Feed capacity once |
S1410A | Sand mixer machine | Ф1000 | 200 |
S1412 | Sand mixer machine | Ф1200 | 330 |
S1416A | Sand mixer machine | Ф1600 | 660 |
S1418 | Sand mixer machine | Ф1800 | 600-800 |
S1420J | Sand mixer machine | Ф2000 | 900-1100 |
S1420E | Sand mixer machine | Ф2000 | 1000-1200
|
S1420T-B | Sand mixer machine | Ф2000 | 1100-1400 |
S1422 | Sand mixer machine | Ф2240 | 1250-1500
|
S1422E | Sand mixer machine | Ф2240 | 1400-1750 |
S1425 | Sand mixer machine | Ф2500 | 1750-2000 |
S1425D | Sand mixer machine | Ф2500 | 2000-2250 |
S1425F | Sand mixer machine | Ф2500 | 2250-2800 |
S1428 | Sand mixer machine | Ф2800 | 2800-3500 |
Model | Productivity(t/h) | Main Motor Power | Rotor Power(kw) |
S1410A | 5 | 4 | 2*2.2 |
S1412 | 6-8 | 7.5 | 2*4 |
S1416A | 8-12 | 15 | 2*7.5 |
S1418 | 12-16 | 22 | 2*11 |
S1420J | 18-22 | 30 | 2*15 |
S1420E | 20-25 | 37 | 2*18.5 |
S1420T-B | 22-28 | 55 | 2*22 |
S1422 | 25-30 | 55 | 2*30 |
S1422E | 28-35 | 75 | 2*30 |
S1425 | 35-40 | 75 | 2*30 |
S1425D | 38-45 | 90 | 2*37 |
S1425F | 45-55 | 110 | 2*45 |
S1428 | 55-70 | 132 | 2*55 |
