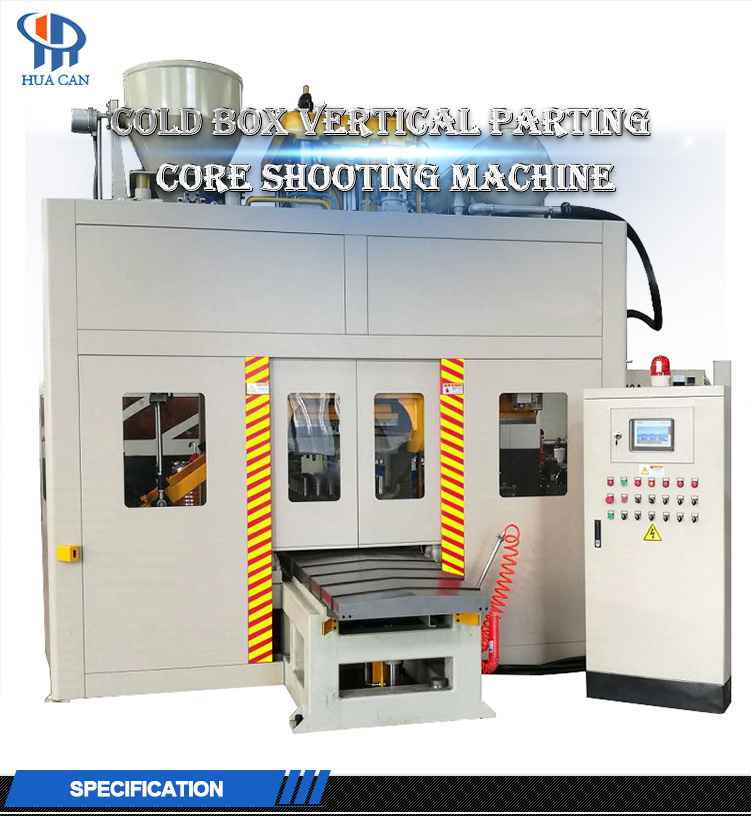

Qingdao Huacan Heavy Industry Co.,Ltd.
| Model | Z9406L | Z9407L | Z9408L |
| Max core box size(mm) | 600*500*400 | 700*600*400 | 800*700*500 |
Mold open/close distance(mm) | 200-900 | 300-900 | 350-1050 |
Max.shooting sand weight(kg) | 30 | 40 | 30 |
| Single station cycle time(s) | 17 | 23 | 25 |
| Drive mode | Pneumatic/Hydraulic | Hydraulic | |
| Core striped mode | In machine/remove out | Remove out | |
| Model | Z9409L | Z9410L | Z9412L |
| Max core box size(mm) | 900*800*600 | 1000*800*600 | 1200*800*600 |
Mold open/close distance(mm) | 400-1200 | 400-1200 | 400-1200 |
Max.shooting sand weight(kg) | 40 | 50 | 60 |
| Single station cycle time(s) | 30 | 35 | 40 |
| Drive mode | Hydraulic | Hydraulic | Hydraulic |
| Core striped mode | Remove out | Remove out | Remove out |
If you have any questions, Please click and contact us.
