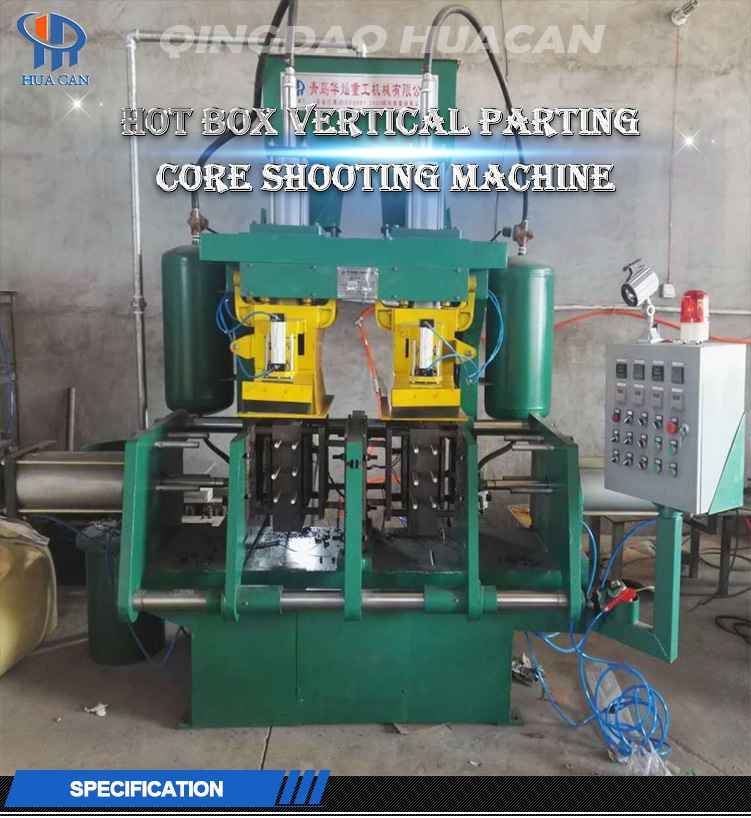

| Model | Z9405(S) | Z9406(S) | Z9407(S) |
| Max core box size(mm) | 500*500*400 | 600*600*450 | 700*600*500 |
| Mold open/close distance(mm) | 200-800 | 300-1000 | 350-1050 |
| Max.shooting sand weight(kg) | 12 | 20 | 30 |
| Single station cycle time(s) | 18 | 20 | 25 |
| Drive mode | Pneumatic | Pneumatic/Hydraulic | Pneumatic/Hydraulic |
| Core striped mode | In machine | In machine/Remove out | In machine/Remove out |
With(S) is double working station,No(S) is one working station we can design and manufacture according to clients requirements. | |||
| Model | Z9408(S) | Z9409(S) | Z9410(S) |
| Max core box size(mm) | 800*700*600 | 900*700*600 | 1000*800*600 |
| Mold open/close distance(mm) | 400-1200 | 400-1200 | 400-1200 |
| Max.shooting sand weight(kg) | 40 | 50 | 60 |
| Single station cycle time(s) | 30 | 35 | 40 |
| Drive mode | Hydraulic | Hydraulic | Hydraulic |
| Core striped mode | Remove out | Remove out | Remove out |
With(S) is double working station,No(S) is one working station we can design and manufacture according to clients requirements. | |||
If you have any questions, Please click and contact us.
