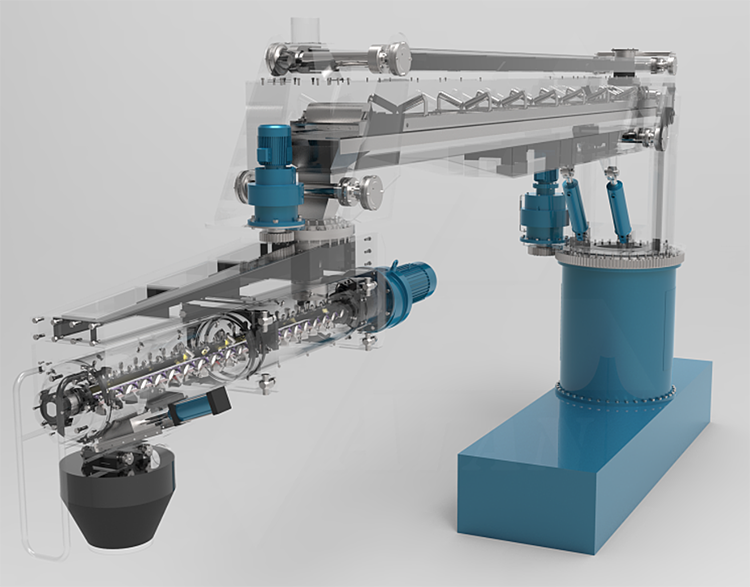

This series of equipment is mainly suitable for mixing resin sand and water glass sand.
Adhesive supply system adopts civil variable diaphragm pump and gear pump, compact volume structure, stable and reliable flow weight.
The sand is mixed evenly, which effectively guarantees the quality of the molding (core making).
The sand mixing time is short, no head and tail sand, and the discharge is clean after shutdown.
Full-open sand mixing cage arm is convenient for blade cleaning or adjustment, and is easy to operate and maintain.
The single-arm swing structure is simple and the equipment investment is small.
The sand mixer inlet can be equipped with new and old sand ratio regulators according to production needs, which can accurately control the ratio of new and old sand.
The electrical appliances are controlled by PLC, with sufficient restrictions and protection, analog screen display, stable work and automatic production.
The main technical parameters
|
Model | Productivity | Motor Power (kw) | Turning Radius (mm) | Resin pump model | Model of curing agent pump |
S245 | 5 | 3 | R2000 | CB-B2.5 | OBL-50 |
S248 | 8 | 5.5 | R2000 | CB-B6 | OBL-50 |
S2412 | 12 | 7.5 | R3000 | CB-B6 | OBL-75 |
S2415 | 15 | 11 | R3000 | CB-B6 | OBL-75 |
S2420 | 20 | 15 | R3000 | CB-B6 | OBL-75 |
