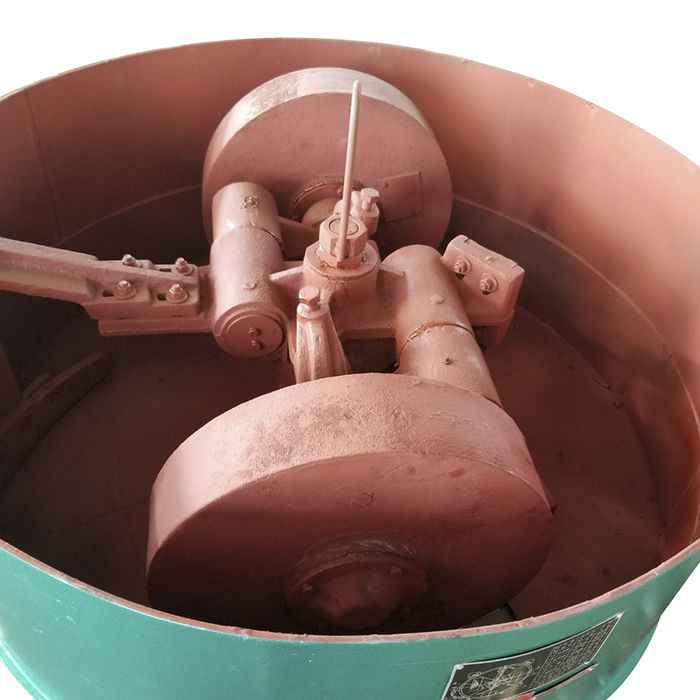

The series equipment is mainly used for foundry sand mixing surface and single sand ,can also be used for large-scale foundry sand and self-hardening sand mixing core,etc.Sand with high efficiency ,good quality and wide application scope.
Alumina wear-resistant ceramic bottom lining plate,2 packing and other new materials,improve the service life of wearing parts.
Hydraulic coupler,alloy steel gear,lubrication control machine,to ensure that the rotation svstem is stable and reliable,and can load startup,overload protection.
The country two patents, technology parameters conform to JB/T2656-91,advanced technology,reasonable structure.
Rotary discharge door (nation patent:9824038.6)open flexible,reliable ,reliable work.
Disc diameter of 1600 mm or more models,all configuration steel chassis,easy to use and install.
The main technical parameters
|
Model | Name | Disc Diameter (mm) | Feed capacity once(kg) | Productivity(t/h) | Main Motor Power(kw) |
S1110 | Sand mixer machine | Ф1000 | 110 | 2.5 | 4 |
S1112 | Sand mixer machine | Ф1200 | 200 | 5 | 7.5 |
S11160 | Sand mixer machine | Ф1600 | 500 | 12 | 18.5 |
S11180 | Sand mixer machine | Ф1800 | 650 | 15 | 22 |
S1120C | Sand mixer machine | Ф2000 | 800 | 20 | 30 |
S1120D | Sand mixer machine | Ф2000 | 800 | 20 | 30 |
S1120E | Sand mixer machine | Ф2000 | 900 | 22 | 37 |
S1122 | Sand mixer machine | Ф2240 | 1350 | 30 | 55 |
S1125 | Sand mixer machine | Ф2500 | 1500 | 45 | 75 |
