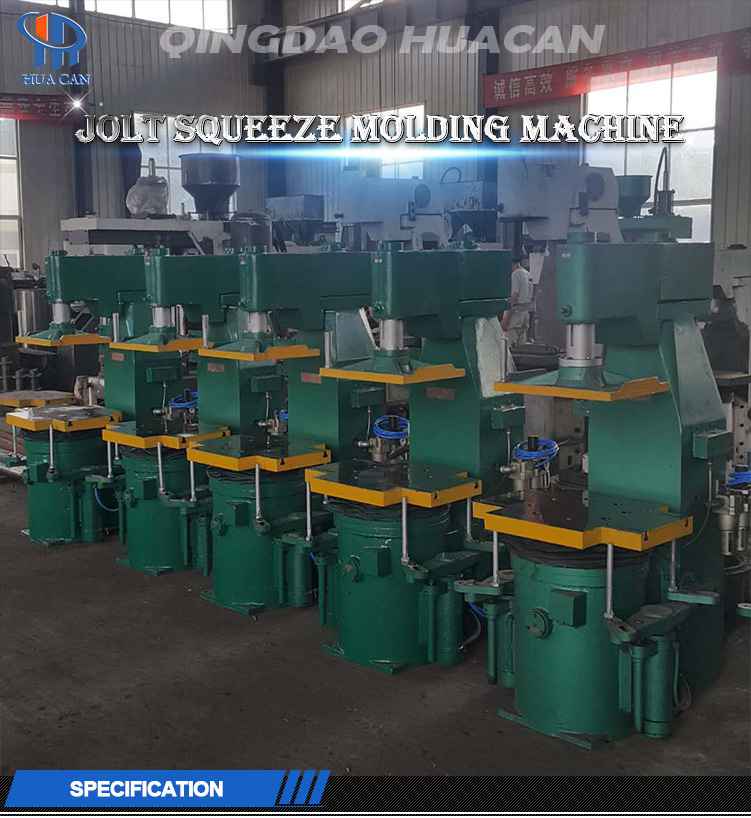

Qingdao Huacan Heavy Industry Co.,Ltd.
| Item | Unit | Z143 | Z145WB | Z145W | Z146W |
| The max of the sand box | mm | 400*400*100 | 500*400*180 | 500*450*200 | 600*500*200 |
| Working table size | mm | 560*420 | 560*465 | 610*515 | 700*555 |
| Working air pressure | Mpa | 0.55 | 0.6 | 0.6 | 0.6 |
| Compressive stress | KN | 40 | 42 | 63 | 70 |
| Jolting load | KN | 2.5 | 2.6 | 3 | 3 |
| Compress process | mm | 90 | 120 | 148 | 150 |
| Molding process | mm | 150 | 150 | 200 | 200 |
Distance pressure-head to the worktable | mm | 200-370 | 170-190 | 200-450 | 200-420 |
| Productivity | Mould/h | 40-60 | 40-60 | 40-60 | 40-60 |
| Item | Unit | Z146WB | Z148CW | Z148E | Z1410 |
| The max of the sand box | mm | 600*500*250 | 800*630*320 | 800*700*320 | 1000*800*350 |
| Working table size | mm | 700*555 | 900*730 | 1000*800 | 1400*1030 |
| Working air pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 |
| Compressive stress | KN | 83 | 120 | 180 | 32000kg |
| Jolting load | KN | 4.6 | 5.5 | / | 1600kg |
| Compress process | mm | 150 | 195 | 200 | 200 |
| Molding process | mm | 200 | 320 | 320 | 350 |
Distance pressure-head to the worktable | mm | 280-500 | 350-680 | 400-695 | 700-1000 |
| Productivity | Mould/h | 40-60 | 40-60 | 40-60 | 40-60 |
If you have any questions, Please click and contact us.
